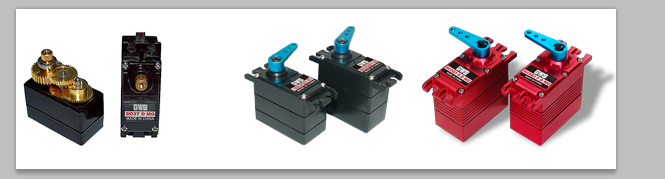

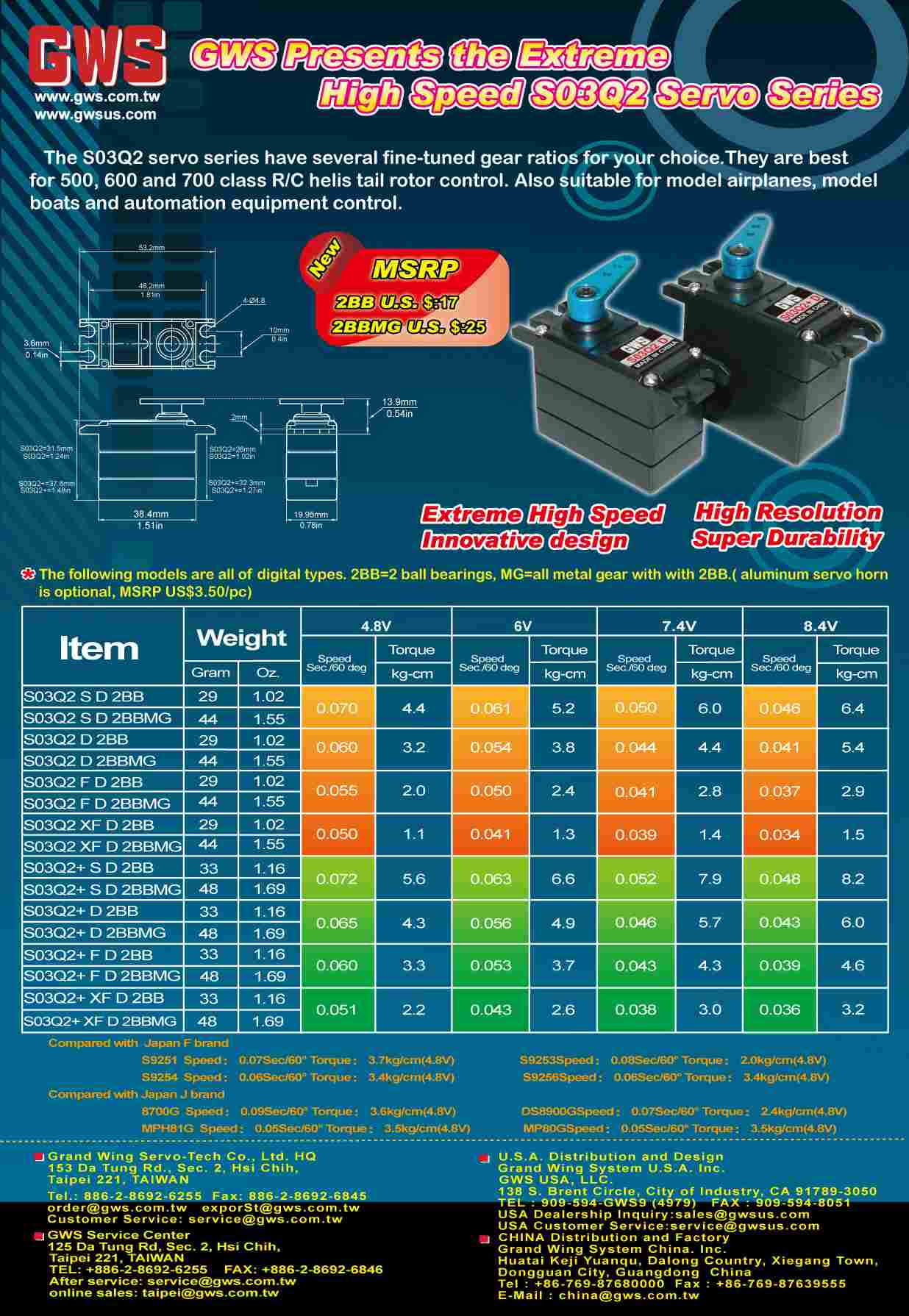

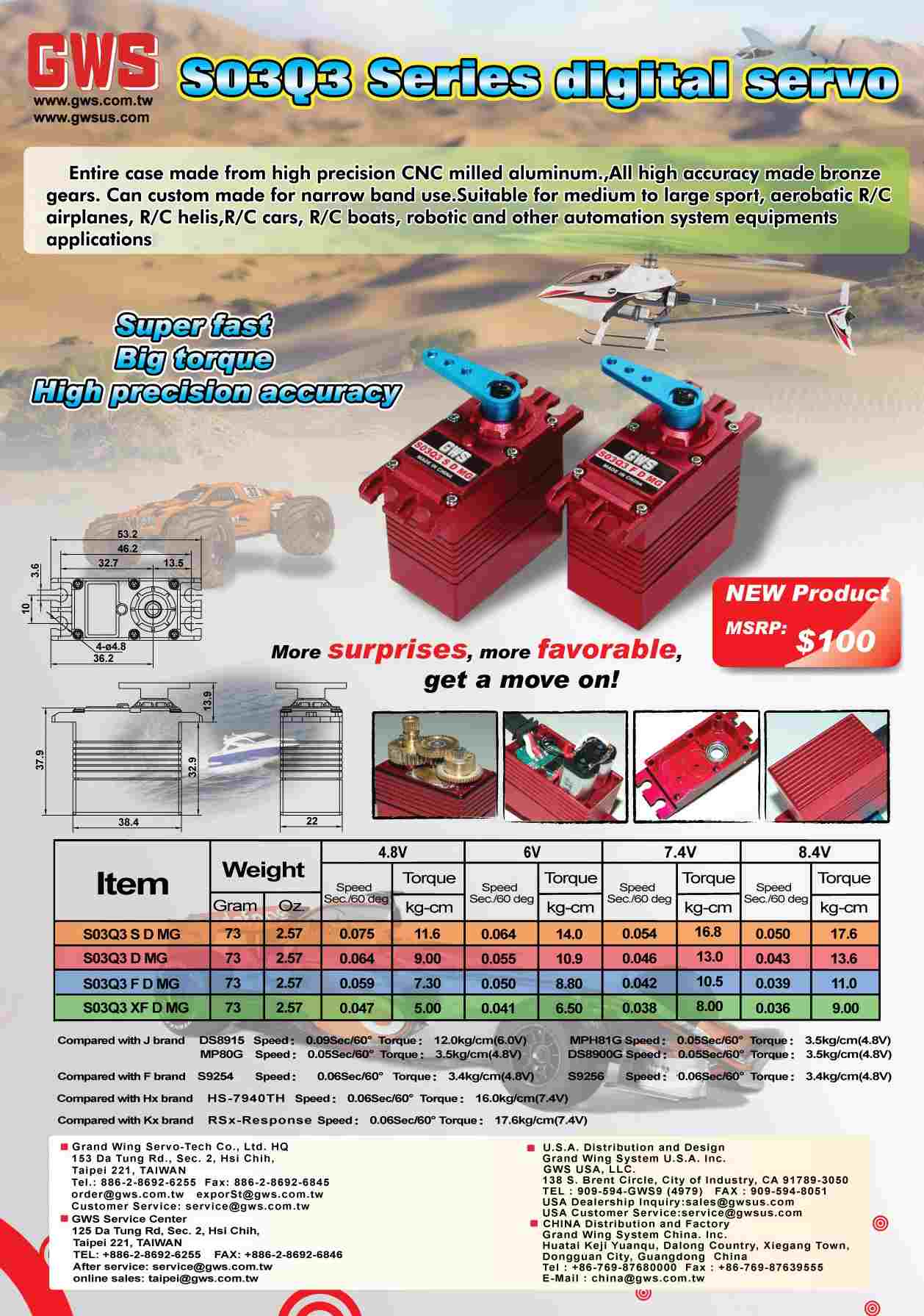

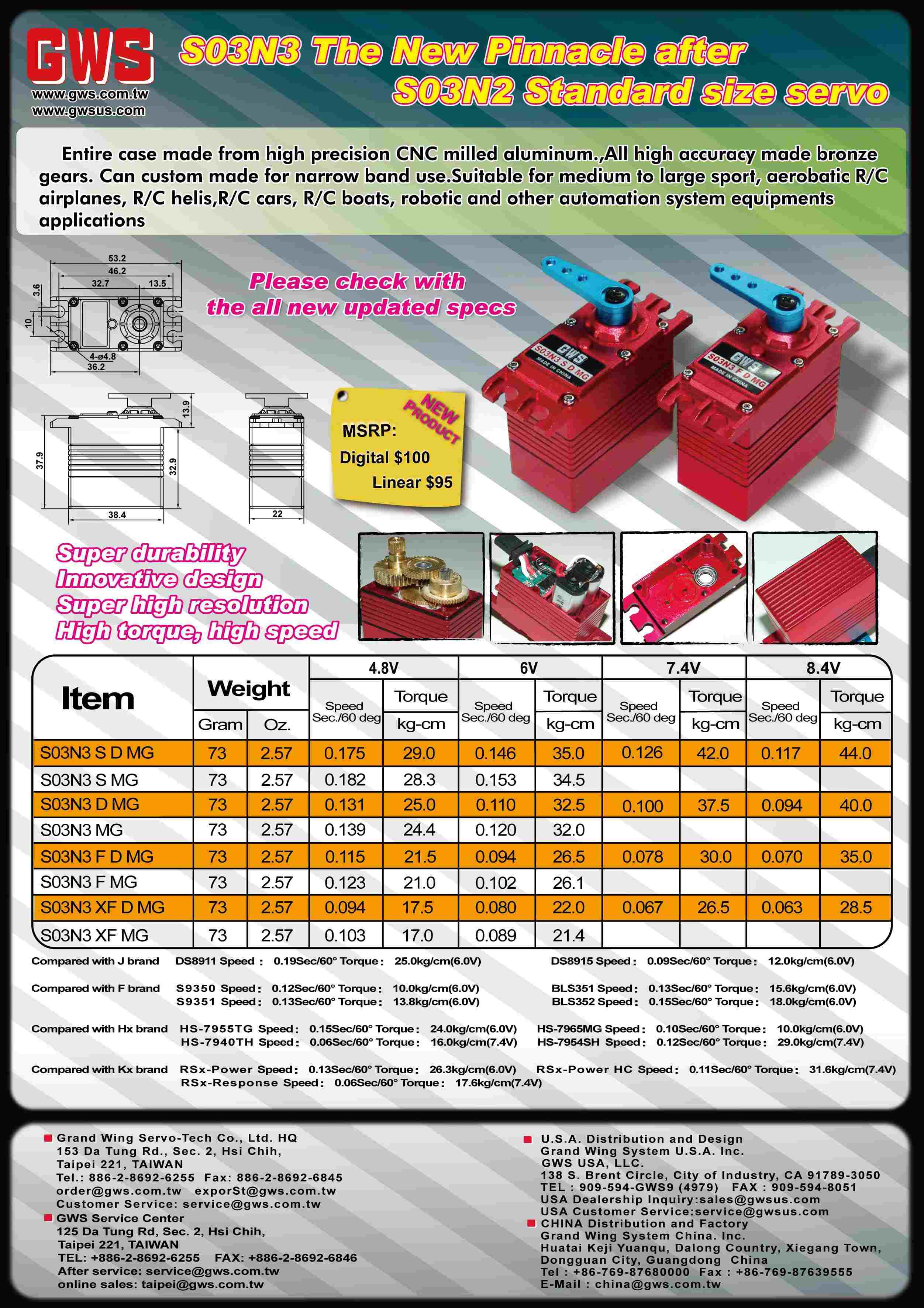

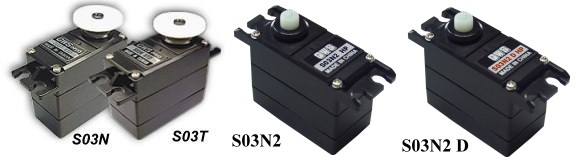

STANDARD SERIES


S05 =>  S03N

S07 =>  S03NF

S08 =>  S03TF

S09 =>  S03NXF

S10 =>  S03TXF

S06 =>  S03T

S05~S10 series servos have been phased out, the S03N(T) instead of from now on.







Model

STD

2BB

MG

Size( L x W x H )

mm/in

Weight

4.8V

6V

Speed

(sec/60°)

Torque

Speed

(sec/60°)

Torque
g oz kg-cm oz-in kg-cm oz-in

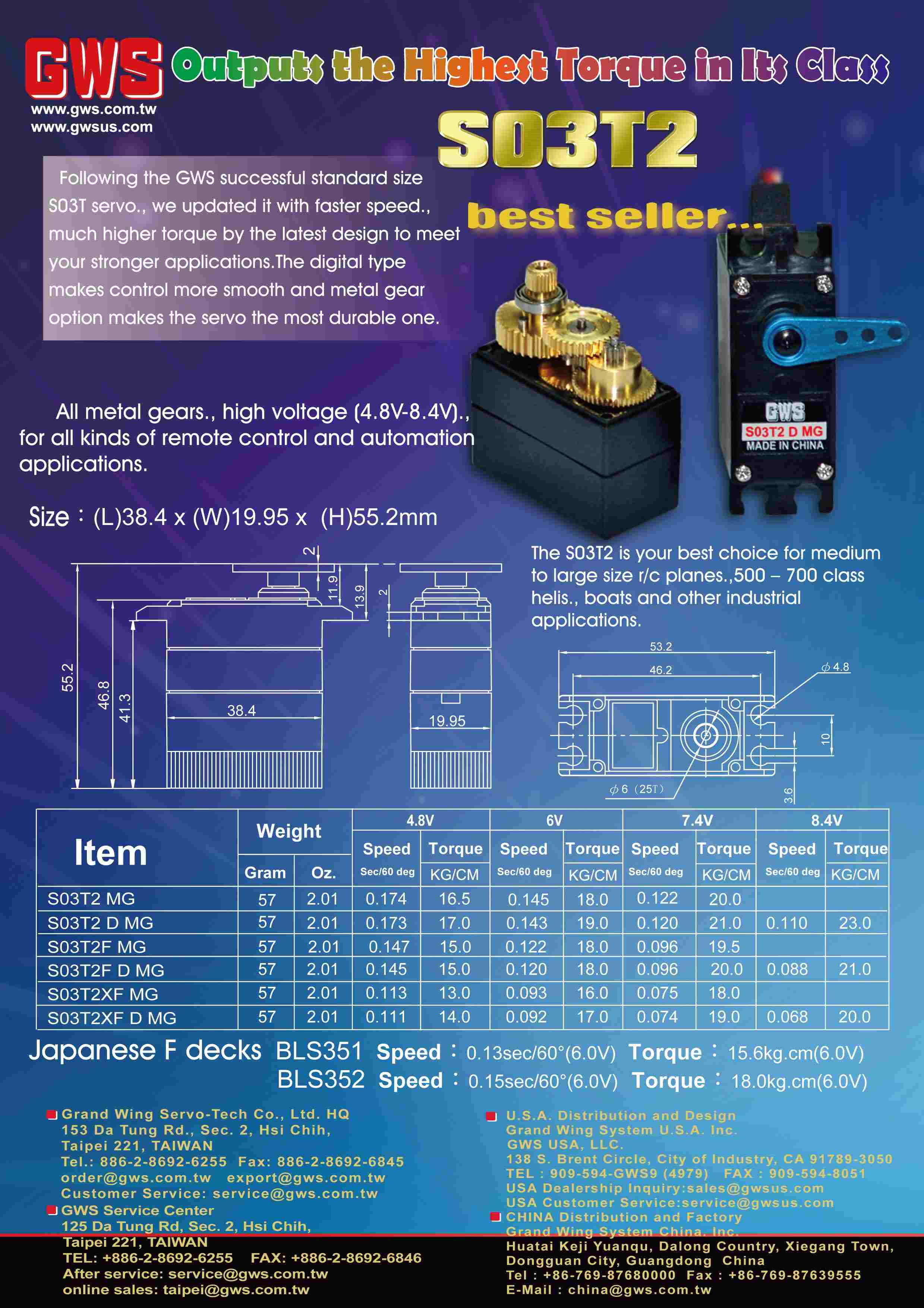

S03N2 D  HP   ●   38.4x19.95x37.8 29 1.02 0.126 5.6 0.104 6.6
S03N2 D F HP   ●   29 1.02 0.098 4.4   0.084 5.6
S03N2 D XF HP   ●   29 1.02 0.082 3.7   0.071 4.2
S03N2 + D HP   ●   33 1.16 0.134 8.2   0.114 9.0
S03N2 +  F D  HP   ●   33 1.16 0.110 7.0   0.098 8.1
S03N2 + XF D HP   ●   33 1.16 0.089 6.0   0.078 7.0
Model

STD

2BB

MG

Size( L x W x H )

mm/in

Weight

7.4

8.4

Speed

(sec/60°)

Torque

Speed

(sec/60°)

Torque
g oz kg-cm oz-in kg-cm oz-in
S03N2 D  HP   ●   38.4x19.95x37.8 29 1.02 0.086 7.3 0.077 8.4
S03N2 D F HP   ●   29 1.02 0.071 6.2   0.062 7.0
S03N2 D XF HP   ●   29 1.02 0.061 4.9   0.055 5.6
S03N2 + D HP   ●   33 1.16 0.102 10.5   0.095 11.4
S03N2 + F D  HP   ●   33 1.16 0.081 9.1   0.074 9.8
S03N2 + XF D HP   ●   33 1.16 0.070 8.0   0.064 8.5



Model

STD

2BB

MG

Size( L x W x H )

mm/in

Weight

4.8V

6V

Speed

(sec/60°)

Torque

Speed

(sec/60°)

Torque
g oz kg-cm oz-in kg-cm oz-in
 S03N D

39.5x20.0x35.6

1.56x0.79x1.40

 41 1.45 0.21 4.5 62 0.18 5 69
 S03N D MG     ● 64 2.26
 S03NF D       41 1.45 0.18 3.8 53 0.15 4.5 62
 S03NF D MG     ● 64 2.26
 S03NXF D       41 1.45 0.14 2.8 39 0.12 3.2 44
 S03NXF D MG     ● 64 2.26
 S03T D

39.5x20.0x39.5

1.56x0.79x1.56

 46 1.62 0.3 8.1 112 0.25 9.2 128
 S03T D MG     ● 73 2.57
 S03TF D       46 1.62 0.25 7.2 100 0.21 8.4 117
 S03TF D MG       73 2.57
 S03TXF D       46 1.62 0.20 6.5 90 0.17 7.5 104
 S03TXF D MG     ● 73 2.57

STD = Oiliness Bearing       2BB= 2 Ball Bearings    MG= Metal Gear with Ball Bearings    D= Digital
GWS Digital Servos are all programmable and with the most advanced ASIC (Application Specific IC) IC to process the input signals, all with the best response time, and best resolution in 12+ bits or 4096+ steps. They work faster, more smoothly, more accurately.
These performance are much better than those another brands' digital servos which were with only MCU (micro controller) ones.
Those MCU ones are with lower response time, and lower resolution (10 bits or 1024 steps).

Model

STD

2BB

MG

Size( L x W x H )

mm/in

Weight

4.8V

6V

Speed

(sec/60°)

Torque

Speed

(sec/60°)

Torque
g oz kg-cm oz-in kg-cm oz-in
S03N 2 HP   ●   38.4x19.95x37.8 29 1.02 0.127 5.5 0.111 6.4
S03N 2 F HP   ●   29 1.02 0.100 4.2   0.090 5.5
S03N 2 XF HP   ●   29 1.02 0.086 3.6   0.078 4.2
S03N 2+ HP   ●   33 1.16 0.148 8.0   0.130 9.0
S03N 2 +  F HP   ●   33 1.16 0.131 7.0   0.123 8.0
S03N 2 + XF HP   ●   33 1.16 0.099 6.0   0.086 6.8

S03N

 ● ●

39.5x20.0x35.6

1.56x0.79x1.40

 41 1.45 0.23 3.40 47 0.18 4.00 56

S03NF

  ●  ●   41 1.45 0.18 2.80  39 0.15 3.20 44

S03NXF

 ● ●   41 1.45 0.15 2.20 31 0.12 2.45 34

S03N 2BBMG

     ● 64 2.26 0.23 3.40 47 0.18 4.20 58

S03NF 2BBMG

     ● 0.18 2.80 39 0.15 3.40 47

S03NXF2BBMG

     ● 0.15 2.50 35 0.12 3.00 42

S03T

●

  ●

39.5x20.0x39.5

1.56x0.79x1.56

 46 1.62 0.33 7.20 100 0.27 8.00 111

S03TF

  ●  ●   46 1.62 0.27 5.80 81 0.22 6.50 90

S03TXF

●

●

   46 1.62 0.21 5.00 69 0.17 6.20 86
 S03T-FET 2BBMG     ● 73 2.57 0.33 7.2 100.13 0.28 8 111.25

S03T 2BBMG

     ● 0.33 7.2 100.13 0.28 8 111.25

S03TF 2BBMG

      ● 0.27 6.00 83 0.22 6.95 97

S03TXF 2BBMG

      ● 0.21 5.60 78 0.17 6.40 89

STD = Oiliness Bearing       2BB= 2 Ball Bearings    MG= Metal Gear with Ball Bearings    D= Digital
