MX SPORT

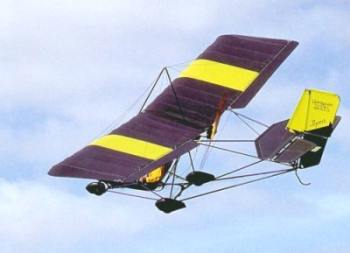

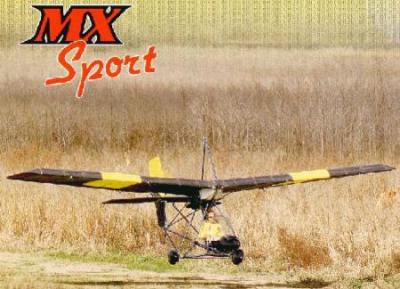

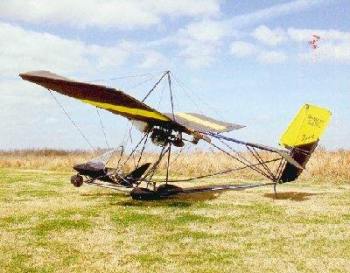

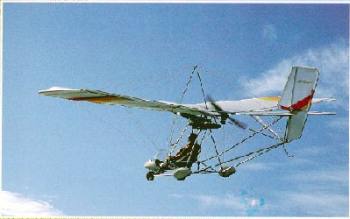

The MX SPORT (double surface wing) is a single seat
aircraft that was designed to enhance the envelope of your flying
pleasure. Its sleek, shortspan double-surface wing with full-span ailerons
and conventional three-axis controls give it a faster roll rate, greater
speed range and better crosswind capability.
MX Sport
For those of you who wanted more!
Created for the discriminating pilot who wants the excitement
of a great performing airplane.
WE LISTEN TO YOU.
When we introduced the MX Sprint, it was
greeted with resounding approval. But some people wanted even
more performance. So, for those of you who wanted more, we now
proudly introduce the MX Sport.
The MX Sport was designed to enhance the envelope of your
flying pleasure. Its sleek, shortspan double-surface wing with
full-span ailerons and conventional three-axis controls give
the MX Sport a faster roll rate, greater speed range and
better crosswind capability. Its 42 horsepower Rotax 447
engine and large 66-inch propeller give the Sport an
exceptional climb rate.
The MX Sport comes standard with Quicksilver's world-renowned
quality and a six-month written limited warranty. (See dealer
for details.) We are the only manufacturer in the industry
with enough confidence in our products to make such an offer.
All Quicksilver kits feature easy-to-assemble construction --
we do all the fabrication, you just bolt it together. Where
other kits give you raw materials, we give you finished parts.
You'll be flying in days, not weeks or months.
More performance...you wanted it, now you can have it!
|
FEATURES
-
Rotax 447 Engine
-
Conventional 3-Axis Controls
-
66" Propeller for More Performance With Less
Noise
-
Flexible Driveshaft Coupler for Reduced
Vibration
-
Tapered Stabilizer
-
Tubular-Braced Tail
-
Triangulated Kingpost Assembly
-
Double Surface Wings
-
Extra Ribs for Firm Airfoil
-
Excellent Crosswind Capability
-
Short Takeoff
-
Very Fast Control Response
-
Quicksilver's Famous Quality
-
Easy-to-Assemble Kit (Average 30 to 40 Hours)
-
6-Month Written Warranty (See Dealer for
Details)
|
PRICES SUBJECT TO CHANGE WITHOUT
NOTICE
All specifications are based
on manufacturer's calculations. All performance figures are
based on standard day, standard atmosphere, at sea level and
175 lb. pilot weight, unless otherwise noted.
Operations/equipment category reflects this aircraft's maximum
potential. The empty weight is approximate due to 6% Mil Spec
tolerance on materials.
NOTE: Specifications and equipment
subject to change without notice. Only Quicksilver Mfg.
approved accessories should be installed on this aircraft.
This aircraft is not designed for aerobatics. Be sure to
follow the owners manual recommendations for flight and
maintenance guidelines.
The pilot is responsible for operating this aircraft in
accordance with the applicable Federal and State Regulations.
Range is listed in statute miles
with no allowance for wind or fuel reserve.
*All performance figures are based on standard
day, standard atmosphere, at sea level, and
aircraft at 525 pounds take-off weight.
These distances must be increased equal to 20%
for each one thousand feet of pressure altitude
above sea level.
**The empty weight is approximate due to a
4% Mil. Spec. tolerance on materials.
Weight shown is minimum empty weight. |
|
Range is listed in statute miles with no allowance
for wind or fuel reserve.
*All performance figures are based on standard day, standard atmosphere,
at sea level, and aircraft at 525 pounds take-off weight.
These distances must be increased equal to 20% for each one thousand feet
of pressure altitude above sea level.
**The empty weight is approximate due to a 4% Mil. Spec. tolerance on
materials.
Weight shown is minimum empty weight.
SPECIFICATIONS
POWERPLANT:
.......................................1 Rotax
Model 447
............................Twin Cylinder, Two Cycle
.......................436.5 cc, 40 hp @ 6500 rpm
Recommended TBO...........................250 hr
Propeller...................................66 in x 34 in
Length............................................18 ft 1 in
Height.............................................8 ft 10 in
Wingspan.......................................28 ft 0 in
Wing area......................................156 sq ft
Wing loading...........................3.36 .lb/sq ft
Power loading...........................13.12 lb.hp
Seats..........................................................1
Minimum flight crew..................................1
Empty weight.....................................254 lb
Useful load.........................................271 lb
Payload w/full fuel..............................241 lb
Max takeoff weight............................525 lb
Fuel capacity...............................5 U.S. gal
PERFORMANCE:
Takeoff distance, ground roll..............75
ft
Takeoff distance, 50 ft obst..............250 ft
Rate of climb...............................850 ft/min
Max level speed, sea level............58 mph
Max operating altitude.................14,000 ft
Landing distance, 50 ft obst.............300 ft
Landing distance, ground roll.............70 ft
CRUISE PERFORMANCE CHART:
(Speed/Range at sea level)
@ 55% power(5000 rpm).......45 mph/90 mi
@ 65% power(5300 rpm).......49 mph/91 mi
@ 75% power(5500 rpm........53 mph/88 mi
@ 100% power(6500 rpm).....59 mph/65 mi
|
FUEL FLOW:
@ 55% power ................................2.5 gph
@ 65% power ................................2.7 gph
@ 75% power ................................3.0 gph
@ 100% power ..............................4.5 gph
LIMITING AND RECOMMENDED
SPEEDS:
Vx (Best angle of climb)................34 mph
Vy (Best rate of climb)...................37 mph
Va (Design maneuvering).............54 mph
Vne (Never exceed).......................74 mph
Vs (Stall, power off)........................27 mph
Landing approach speed (1.3 Vs)...........
...........................35 mph
KIT COST:
............... Contact dealer for price
|
All specifications are based on
manufacturers calculations.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
This information is for reference only, please consult Quicksilver
Mfg.® or one of it’s dealers for exact
and up to date specifications. |
|
