Item : GW/OBI001

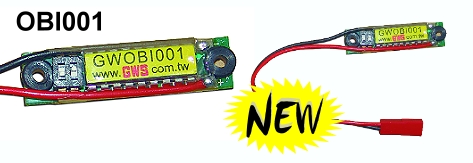

Light Weight & Compact Easy to Carry & Use Green/Yellow/Red LED Indicator Voltage Selection: 1 ~ 4 Cells Li-PO Easy to Install on Board Size: 43x11mm /1.69x0.43 in Weight: 5 gram / 0.18 oz CE & RoHS Ready |
Item : GW/OBI-02 Model :
Led Color :
|
Model |
LED NO. & COLOR | LED NO. |
|||||||||
| 1 Red | 2 Red | 3 Red | 4 Yellow | 5 Green | 6 Green | 7 Green | 8 Green | 9 Green | 10 Green | ||
|
OBI-02-4 |
4.20 | 4.30 | 4.40 | 4.50 | 4.60 | 4.70 | 4.80 | 4.90 | 5.00 | 5.10 |
(volts) |
|
OBI-02-5 |
5.25 | 5.35 | 5.55 | 5.65 | 5.75 | 5.85 | 6.00 | 6.15 | 6.25 | 6.35 | |
|
OBI-02-6 |
6.30 | 6.45 | 6.60 | 6.75 | 6.90 | 7.05 | 7.20 | 7.35 | 7.50 | 7.65 | |
|
Item : GW/OBI-03 Model : OBI-03 (For 4-Cell/4.8V ~ 8Cell/9.6V Battery Pack)
Led Color :
This can check voltage of battery pack (4.8~9.6 Volts) by changing a resistor as shown. 5 resistors (all different values) are being supplied with this device for modeler's convenience |
|
Item :GW/OBI-05L Size : 43x11mm /1.69x0.43 in Weight : 5 gram / 0.18 oz sw.1 sw.2 4.8V : ON ON 6.0V : ON OFF 7.2V : OFF ON 8.4V : OFF OFF |
Item : GW/OBI-05H Size : 43x11mm /1.69x0.43 in Weight : 5 gram / 0.18 oz sw.1 sw.2 6.0V : ON ON 7.2V : ON OFF 8.4V : OFF ON 9.6V : OFF OFF |
BATT. |
LED NO. & COLOR | LED NO. |
|||||||||
| 1 Red | 2 Red | 3 Red | 4 Yellow | 5 Green | 6 Green | 7 Green | 8 Green | 9 Green | 10 Green | ||
| 4.8V | 4.20 | 4.30 | 4.40 | 4.50 | 4.60 | 4.70 | 4.80 | 4.90 | 5.00 | 5.10 |
(volts)
|
| 6.0V | 5.25 | 5.35 | 5.55 | 5.65 | 5.75 | 5.85 | 6.00 | 6.15 | 6.25 | 6.35 | |
| 7.2V | 6.30 | 6.45 | 6.60 | 6.75 | 6.90 | 7.05 | 7.20 | 7.35 | 7.50 | 7.65 | |
| 8.4V | 7.35 | 7.55 | 7.70 | 7.90 | 8.05 | 8.25 | 8.40 | 8.60 | 8.75 | 8.95 | |
| 9.6V | 8.40 | 8.60 | 8.80 | 9.00 | 9.20 | 9.40 | 9.60 | 9.80 | 10.00 | 10.20 | |
